Selectable LED Area Light by Nuvo Lighting
Brand: Nuvo Lighting
Product Description

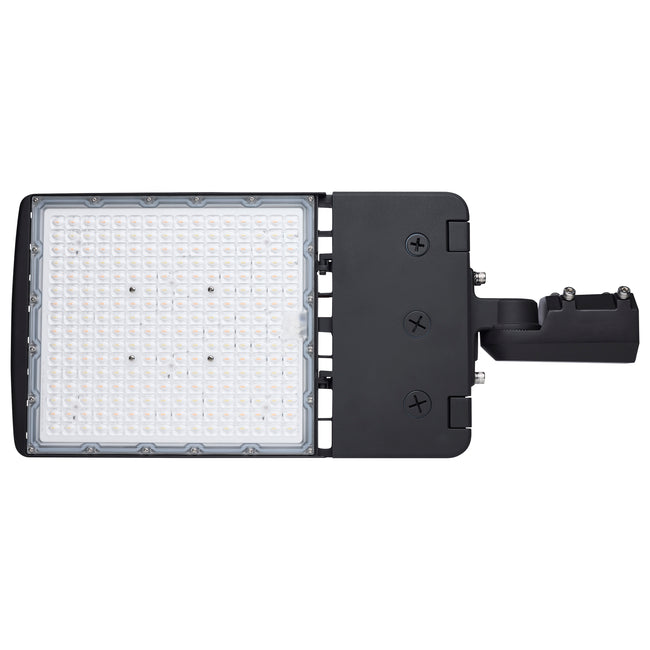

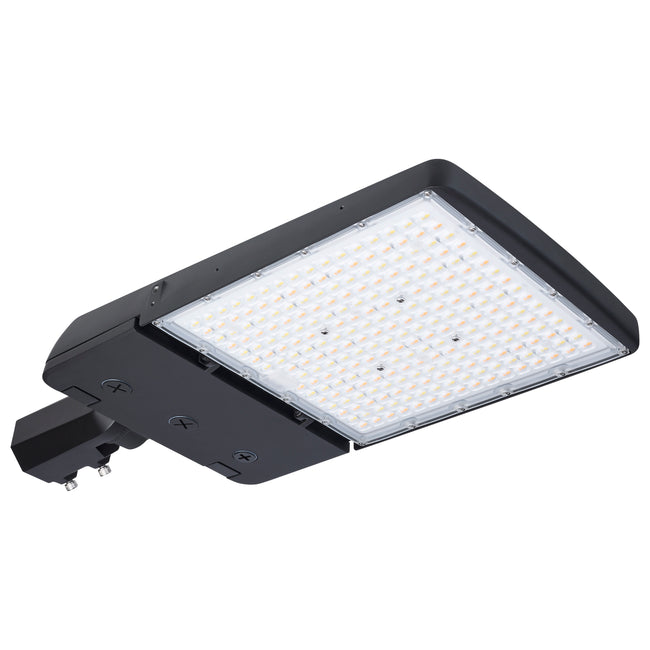

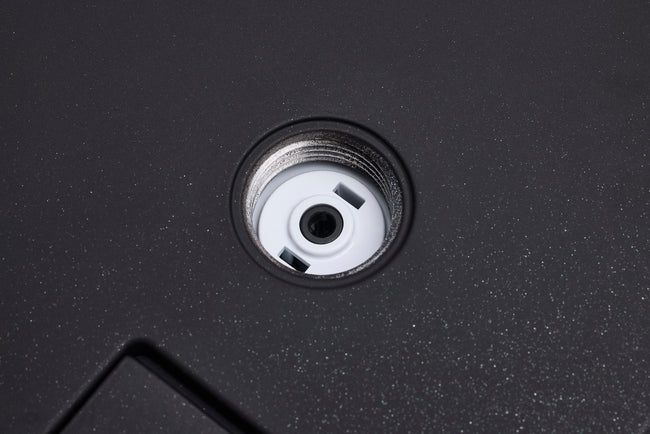

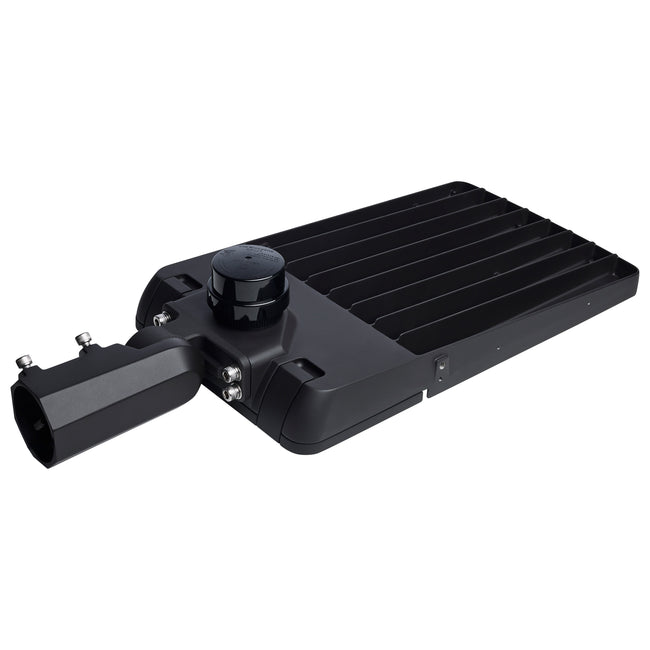

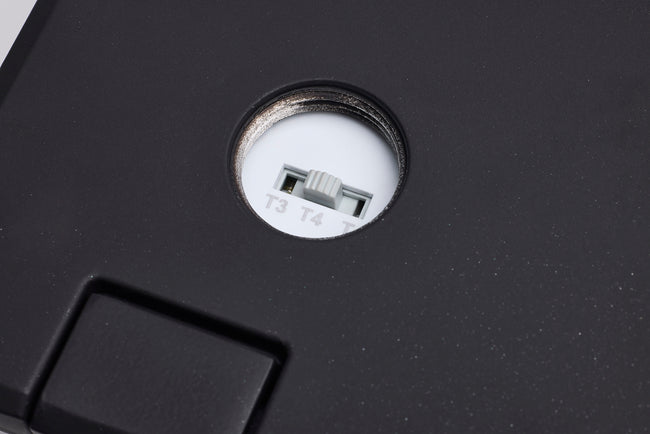

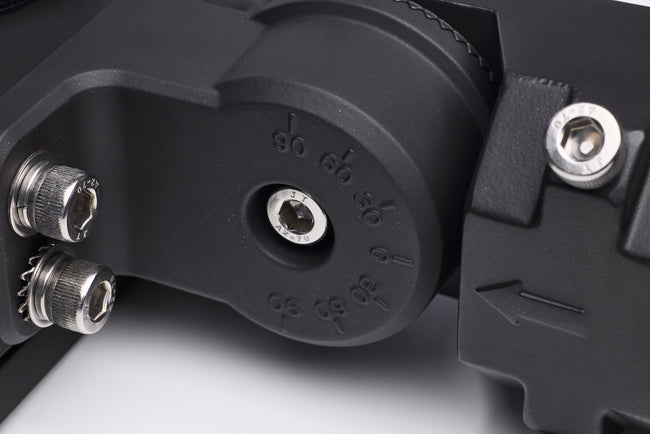

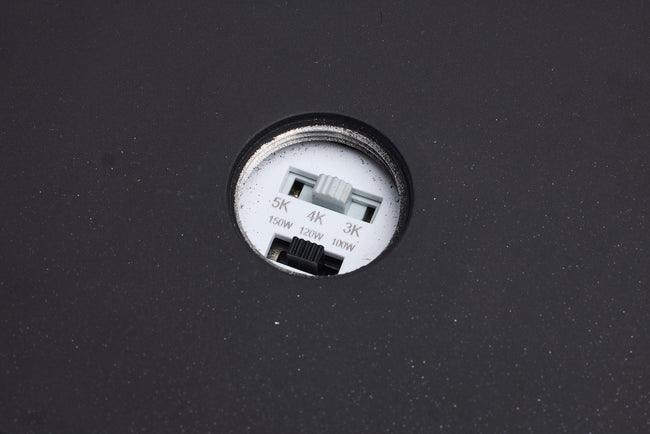

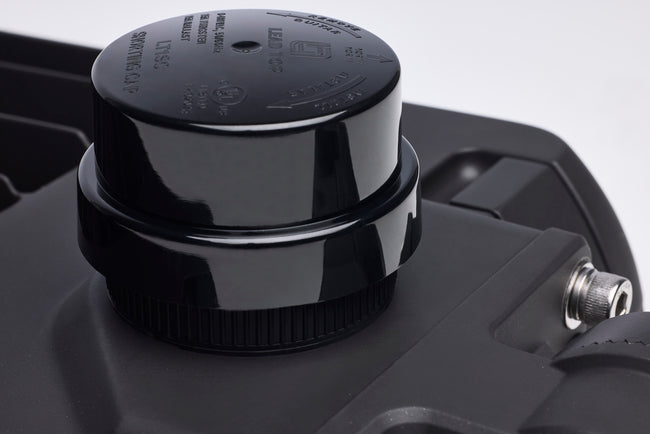

SATCO NUVO's LED Beam Selectable Area Lights deliver high-performance outdoor illumination with precision-controlled distribution. Fixtures feature selectable beams of Type III, Type IV, or Type V and 3 selectable CCT (3000K/4000K/5000K) to tailor coverage and color temperature to each application. Two compact models offer selectable wattages of 100W, 120W, or 150W, while larger footprint options provide 200W, 240W, or 300W outputs, producing lumen packages ranging from 15,488 up to 47,341 lumens. Each size is available in 120-277V or 277-480V configurations to support a wide range of site requirements. Constructed of die-cast aluminum with IK08 rated polycarbonate lenses and a bronze finish, all fixtures are IP65 rated, wet location listed, DLC 6.0 Listed, supporting evolving efficiency standards, and include an integrated sensor port. A standard 2-3/8" slip fitter mount is included, with additional mounting options and accessories available separately, and all models are backed by a 50,000 hour rated life.
Design & Materials
| Material | Die-Cast Aluminum |
Dimensions & Physical
| Dimensions |

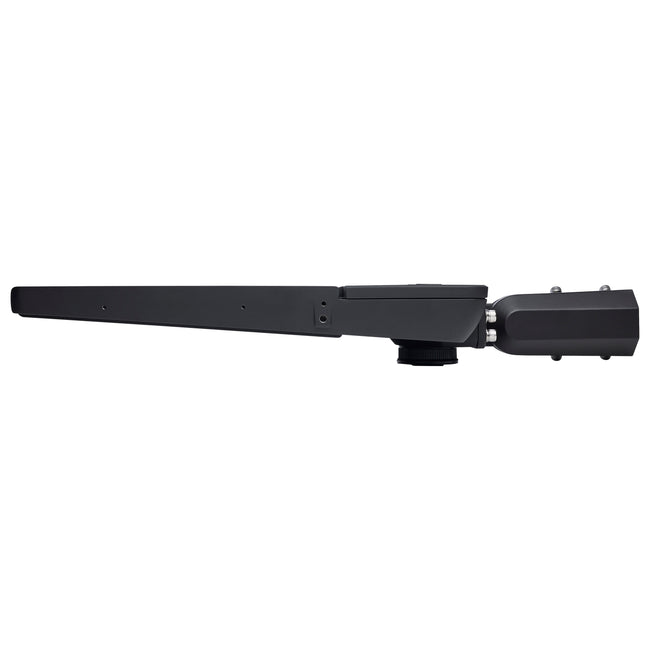

Width/Diameter: 10.60" Length: 25.20" Height: 3.20" Weight: 10.09 lbs |
| Shipping Boxes | Box 1: 11.69W x 26.77L x 4.61H / 12.28 lbs |
Lighting & Electrical Specs
General Light Specs
| Light Source | LED |
| Light Output | 15536.00 Total Lumens |
| Beam Spread | 80.00 |
| Color Temperature | 3000K |
| Color Temperature Range | 2700K-3000K (Warm White) |
| CRI | 80 |
| Rated Average Life | 50000 |
Bulb Details
| Bulbs Included | Yes |
| Bulb Details | Integrated Integrated |
Hardware
| Wire | Black |
Electrical
| Safety Rating | Wet |
| Voltage | 120.00V |
| Maximum Wattage | 150.00W |
| Dimmable | Not Listed |
Manufacturer Warranty
| Manufacturer Warranty | 5-Years |
